EMBEDDED ETHERNET EVALUATION KI EASY ACCESS PE-505 FUNCTIONALITY

Pure Embedded Industrial 10/100 Ethernet Switch Evaluation Kit - allows easy access to all features of the PE-505* and allows for further testing and debugging within a prototype system before any commitment to custom fixtures or designs is made.

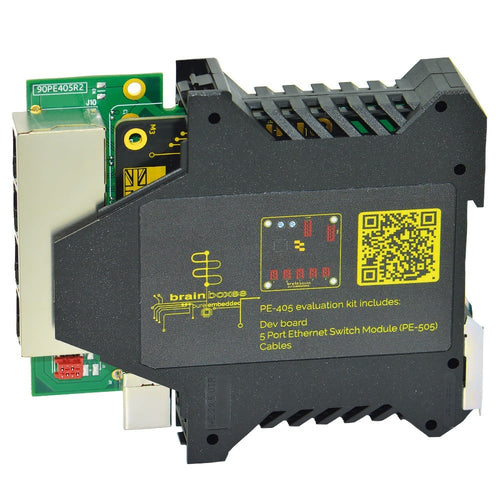

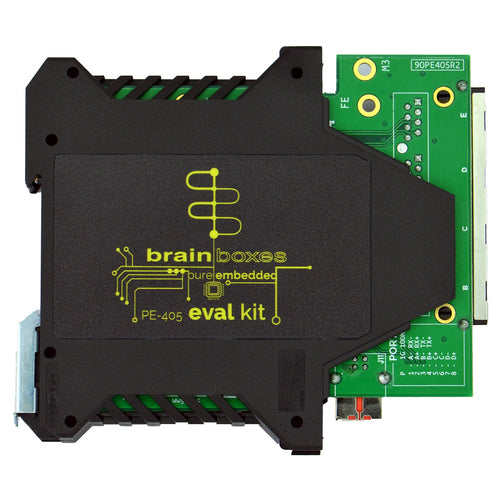

PE-405 Embedded Industrial 10/100 Ethernet Evaluation Kit includes:

Pure Embedded Industrial 5 Port 10/100 Ethernet Switch (PE-505)*

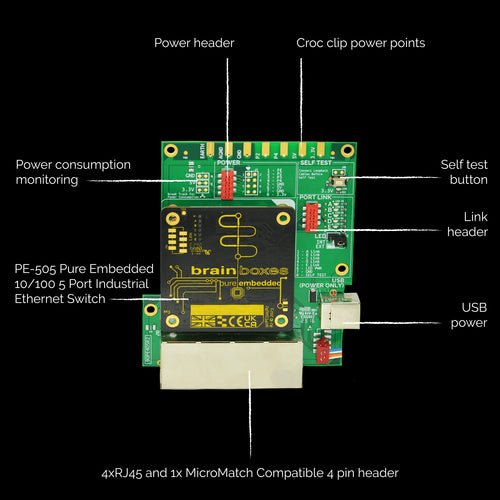

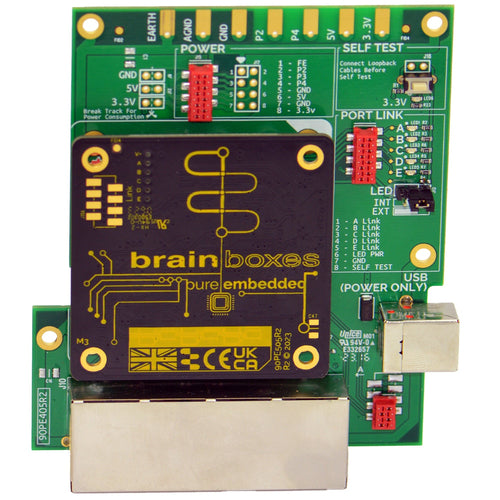

Evaluation board (breaks out all ports and functionality to RJ45 or usable headers)

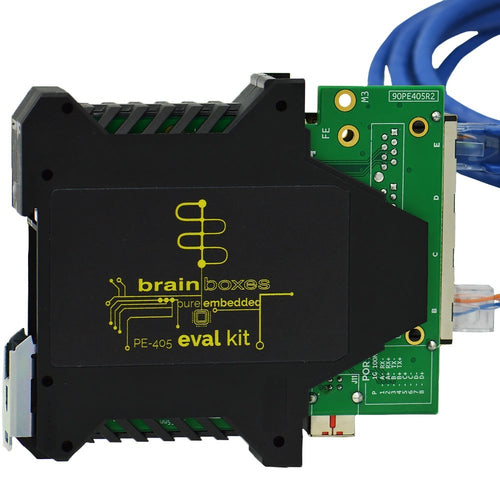

5x IDC Header to RJ45 Cable
IDC Headers
USB Power Cable

*PE-505 Pure Embedded Industrial 5 Port 10/100 Ethernet Switch

3D CAD files and PCB footprints
Mega compact form – smaller than a standard business card (55x55x10mm)
Seamless integration with design software - logical placements and fixed distances
Board-to-board and board-to-cable connection
Stability of design guaranteed for min. 10 years
LEDs visible in all orientations – option to route through fibre
